More Than Just an Outlet - NEMA 14-50 as a Modern Life Power Hub
The world is plugging in! From electric cars to powerful home appliances, our need for reliable electricity is growing. You might have heard about a special kind of electrical outlet. It's called the NEMA 14-50. This isn't just any outlet. For many, it's a key to faster electric vehicle (EV) charging. It powers large RVs at campsites. It can even run big tools in your workshop.
Why is the NEMA 14-50 becoming so common in North American homes and businesses? It's because it offers a lot of power, safely. This guide will tell you everything you need to know. We will cover what a NEMA 14-50 socket is. We will look at how it's used. We will also discuss how to install it safely and what it might cost. By the end, you'll understand this important piece of electrical hardware.
This guide will help you learn:
•What makes the NEMA 14-50 special.
•Its main uses, like for a NEMA 14-50 EV charger.
•Important safety tips.
•Rough costs for installation.
What is NEMA 14-50? Decoding Electrical Specs & Structure
NEMA stands for the National Electrical Manufacturers Association. This group sets standards for many electrical products in North America. The numbers and letters in NEMA 14-50 tell us about the outlet.
The "14" means it provides two "hot" wires, a neutral wire, and a ground wire. This setup allows it to supply both 120 volts and 240 volts. The "50" tells us it's rated for 50 amperes (amps). Amps measure electrical current. More amps mean more power. So, a 50 amp NEMA 14-50 is a high-power outlet.

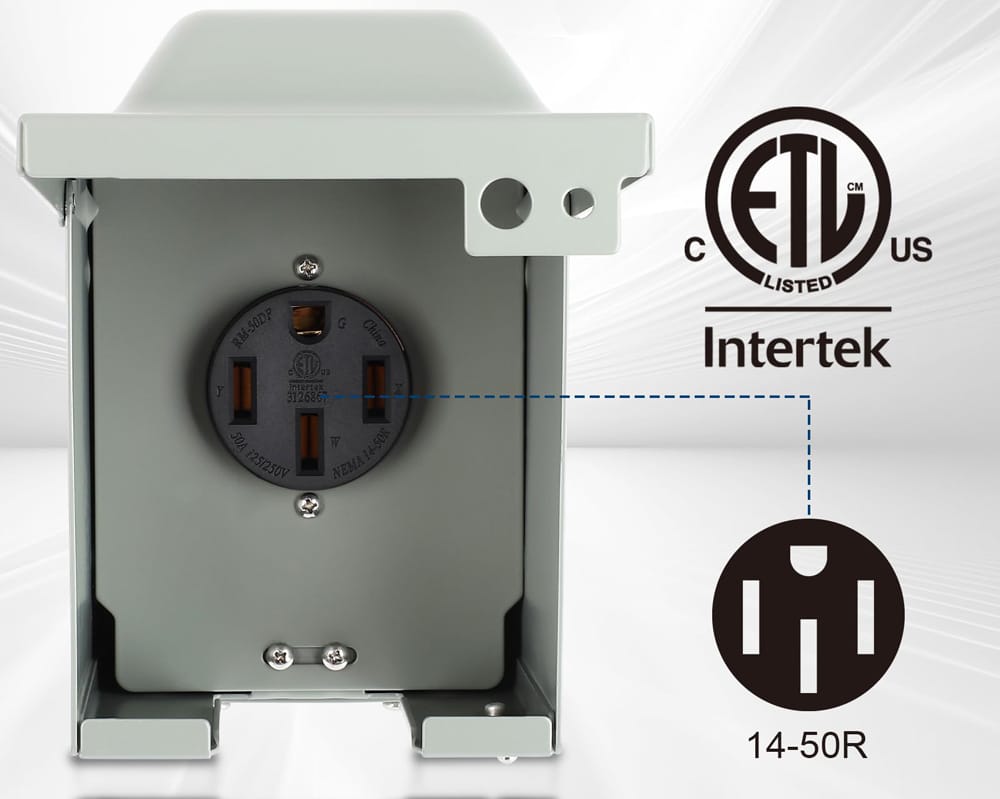

A NEMA 14-50 receptacle (the outlet in the wall) has four openings. The matching NEMA 14-50 plug (on the cord of an appliance) has four prongs.
•Two Hot Wires (X, Y): These carry 120 volts each. Together, they provide 240 volts.
•Neutral Wire (W): This is a return path for 120-volt circuits. It's usually round or L-shaped.
•Ground Wire (G): This is for safety. It's usually U-shaped or round.
It's important to use the correct 14-50 plug with the 14-50 outlet to ensure a safe connection.
Here's how the NEMA 14-50 compares to some other common NEMA outlets:
| Feature | NEMA 14-50 | NEMA 10-30 (Older Dryers) | NEMA 14-30 (Newer Dryers/Ranges) | NEMA 6-50 (Welders, some EVs) |
|---|---|---|---|---|
| Voltage | 120V/240V | 120V/240V | 120V/240V | 240V |
| Amperage | 50A (use at 40A continuous) | 30A | 30A | 50A |
| Wires | 4 (2 Hot, Neutral, Ground) | 3 (2 Hot, Neutral, NO Ground) | 4 (2 Hot, Neutral, Ground) | 3 (2 Hot, Ground, NO Neutral) |
| Grounded | Yes | No (Older, less safe) | Yes | Yes |
| Common Uses | EVs, RVs, Ranges, Ovens | Older Electric Dryers | Newer Dryers, Smaller Ranges | Welders, some EV Chargers |
You can see the NEMA 14-50 is versatile because it offers both voltage options and has a ground wire for safety. The 240 volt outlet NEMA 14-50 capability is key for high-power needs.
NEMA 14-50's Core Applications
A. Electric Vehicle (EV) Charging: A Top Choice If you own an EV, you want to charge it quickly at home. A standard 120-volt outlet (Level 1 charging) can take a very long time. The NEMA 14-50 allows for much faster Level 2 charging.
•Why it's great for Level 2: A NEMA 14-50 EV charger can deliver up to 9.6 kilowatts (kW) of power (240V x 40A). This is much more than the 1−2 kW from a regular outlet.
•Faster Charging: This means you can fully charge most EVs overnight. Or, you can add significant range in just a few hours.
•Compatibility: Many portable EV chargers come with a NEMA 14-50 plug. Some wall-mounted chargers can also be plugged into a 14-50 receptacle, offering flexibility if you move.
B. Recreational Vehicles (RVs): The "Lifeline" For RV owners, the NEMA 14-50 is essential. Campgrounds often provide a NEMA 14-50 outlet for "shore power."
•Powering your RV: This connection lets you run everything in your RV. This includes air conditioners, microwaves, lights, and other appliances.
•50 Amp RVs: Larger RVs with multiple AC units or many appliances often require a 50 amp NEMA 14-50 connection to function fully.
C. Home High-Power Appliances This outlet isn't just for vehicles. Many homes use it for:
•Electric Ranges and Ovens: These kitchen workhorses need a lot of power.
•Electric Dryers: Some larger or older high-power dryers might use a NEMA 14-50. (Though NEMA 14-30 is more common for most modern dryers).
•Workshops: Welders, large air compressors, or kilns might use a 14-50 plug.
D. Temporary Power and Backup Options Sometimes, you need a lot of power temporarily. The NEMA 14-50 can be useful for job sites or as a connection point for some types of backup generators during a power outage.
In-Depth Analysis: Choosing & Installing NEMA 14-50 - The "Pitfall Avoidance" Guide
Installing a 240v NEMA 14-50 outlet is not a simple DIY project for most people. It involves working with high voltage. Mistakes can be dangerous. Here's what you need to know.
A. The Real Costs: More Than Just an Outlet The price of the NEMA 14-50 receptacle itself is small. But total costs can add up.
1.The Outlet: A good quality 14-50 receptacle might cost $10 - $50. Industrial-grade ones cost more.
2.Wire: You'll need the right size wire (usually 6-gauge copper wire for a 50-amp circuit). Wire costs vary but can be a big part of the expense, especially for long runs.
3.Circuit Breaker: A new 50-amp double-pole breaker is needed in your electrical panel. ($20 - $100+).
4.Conduit & Boxes: If wires run outside walls, you'll need conduit (pipe) and electrical boxes.
5.Labor Costs: This is usually the biggest part. Electrician rates vary by region and job difficulty. Expect $200 to $1000+, or even more in complex situations.
6.Potential Extras:
•Panel Upgrade: If your main electrical panel is old, full, or too small, it might need an upgrade. This can cost $1,000 to $4,000 or more.
•Permits: Most places require an electrical permit for this kind of work. This adds a fee ($50 - $200+).
•Long Wire Runs: The farther the outlet is from your panel, the more wire and labor are needed.
It's wise to get a few quotes from qualified electricians.
B. Safety First: Professional Installation is Key This is not a place to cut corners. Working with 240 volts is dangerous.
•Why a Pro? Licensed electricians know the National Electrical Code (NEC) and local codes. They ensure your NEMA 14-50 outlet is installed safely and correctly. This protects your home, your appliances, and your family.
•Common Mistakes if DIY-ing (and their Dangers!):
•Wrong Wire Size: Too-small wires can overheat and cause fires.
•Incorrect Breaker: A breaker that's too large won't protect the circuit. A breaker that's too small will trip often.
•Loose Connections: These can arc, spark, and cause fires or damage.
•Mixing Wires: Connecting wires to the wrong terminals can damage appliances or create shock hazards. The NEMA 1450 receptacle (another way people refer to the NEMA 14-50 receptacle) wiring is specific.
•No Permit/Inspection: This can cause problems with insurance or when selling your home.
•Finding a Good Electrician:
•Ask for recommendations.
•Check licenses and insurance.
•Look at online reviews.
•Get a written estimate.
C. Future-Proofing: NEMA 14-50 and Smart Energy The NEMA 14-50 isn't just for today. It can be part of a smarter home.
•Smart EV Chargers: Many NEMA 14-50 EV charger models are "smart." You can control them with an app, schedule charging for cheaper electricity times, and track energy use.
•Home Energy Systems: As people add solar panels or home batteries, a robust 240v NEMA 14-50 outlet can be a useful connection point for certain equipment.
•Vehicle-to-Home (V2H) / Vehicle-to-Grid (V2G): These are new ideas. They involve EVs sending power back to a home or the grid. While still developing, having a 50 amp NEMA 14-50 circuit could be helpful as these technologies grow.
•Home Value: A properly installed NEMA 14-50 outlet, especially for EV charging, can be an attractive feature if you sell your home.
D. User Pain Points: Common Issues & Troubleshooting Even with a good installation, you might have questions.
•Outlet/Plug Gets Hot: If your NEMA 14-50 plug or outlet feels very hot, stop using it immediately and call an electrician. This can be due to a loose connection, a worn-out outlet, an overloaded circuit, or a poor-quality plug/outlet. Industrial-grade outlets often handle heat better.
•Breaker Trips Often: This means the circuit is drawing too much power, or there's a fault. Don't just keep resetting it. An electrician needs to find the cause.
•EV Charger Compatibility: Most Level 2 EV chargers work with a NEMA 14-50. But always check your EV and charger manuals.
•Outdoor Use: If your 14-50 outlet is outdoors (e.g., for an RV or external EV charging), it MUST be a weather-resistant (WR) type and installed in a proper "in-use" weatherproof cover. This protects it from rain and moisture.
NEMA 14-50 Installation Process Overview
Warning: This is NOT a DIY guide. This overview helps you understand what your electrician will do. Always hire a qualified professional.
1.Planning: The electrician will check your electrical panel's capacity. They will help choose the best spot for the NEMA 14-50 socket. They'll figure out the wire path.
2.Safety Off: They will turn off the main power to your house at the panel. This is critical.
3.Running Wire: They will run the correct gauge wire (e.g., 6/3 AWG copper with ground) from the panel to the outlet location. This might involve going through walls, attics, or crawlspaces. Conduit may be used for protection.
4.Installing Breaker & Outlet: They will install a new 50-amp double-pole circuit breaker in an empty slot in your panel. They will connect the wires to the breaker. Then, they'll wire the 14-50 receptacle in an electrical box at the chosen spot, ensuring each wire goes to the correct terminal (Hot, Hot, Neutral, Ground).
5.Testing: After everything is connected and checked, they will turn the power back on. They will test the outlet to ensure it's wired correctly and provides the right voltage.
6.Inspection: If a permit was pulled, a local electrical inspector will check the work to ensure it meets all codes.
Smart Shopping: Choosing Quality NEMA 14-50 Equipment
Not all electrical parts are made equal. For a high-power connection like a NEMA 14-50, quality matters for safety and long life.
A. NEMA 14-50R Receptacle (The Outlet):
•Certification: Look for UL Listed or ETL Listed marks. This means it meets safety standards.
•Grade:
•Residential Grade: Cheaper, okay for occasional use.
•Industrial/Commercial Grade (Heavy-Duty): Recommended, especially for frequent EV charging. They have stronger contacts, better heat resistance, and last longer. Brands like Hubbell, Leviton (their industrial line), and Bryant are known for quality.
•Terminals: Good outlets have robust screw terminals for secure wire connections.
B. NEMA 14-50P Plug and Cord Sets (for Appliances/Chargers):
•Wire Gauge: Ensure any cord with a 14-50 plug uses appropriately thick wire for its length and amperage.
•Molded Plugs: High-quality molded plugs are generally safer and more durable than ones you assemble yourself.
•Certification: Again, look for UL or ETL marks.
C. EVSE (Electric Vehicle Supply Equipment) / EV Chargers: If you're getting a NEMA 14-50 EV charger:
•Power Level: Choose one that matches your EV's charging capability and your electrical circuit (max 40A continuous on a 50A circuit).
•Smart Features: Consider if you want Wi-Fi, app control, or scheduling.
•Brand & Reviews: Research reputable brands and read user reviews.
•Safety Certified: Ensure it's UL or ETL listed.
Embrace NEMA 14-50 for an Efficient Electrical Life
The NEMA 14-50 is more than just a heavy-duty outlet. It's a gateway to faster EV charging, comfortable RVing, and powering high-demand appliances. Understanding what a NEMA 14-50 plug and receptacle are, how they work, and their benefits can help you make smart choices for your home or business.
Remember, the key to using this powerful 240 volt outlet NEMA 14-50 is safety. Always have a licensed electrician handle the installation. With proper setup, your 50 amp NEMA 14-50 connection will serve you reliably for years to come.
FAQ
Q1: Can I install a NEMA 14-50 myself? A: It's strongly discouraged unless you are a licensed electrician. Working with 240 volts is dangerous. Incorrect installation can lead to fire, electric shock, or damage to appliances. Always hire a professional.
Q2: How much does it cost to install a NEMA 14-50 outlet? A: Costs vary widely, from a few hundred to over a thousand dollars. Factors include your location, electrician rates, distance from the panel, and if your panel needs upgrading. Get multiple quotes.
Q3: How fast will a NEMA 14-50 charge my EV? A: This depends on your EV's onboard charger and the EVSE (charger unit) you use. A NEMA 14-50 circuit can typically support charging rates from 7.7 kW to 9.6 kW. This can add 20-35 miles of range per hour of charging for many EVs.
Q4: My house's electrical panel is old. Can I still install a NEMA 14-50? A: Maybe. An electrician needs to do a "load calculation" to see if your panel has enough capacity. If not, or if there are no empty breaker slots, you might need to upgrade your panel, which is an additional cost.
Q5: Is a NEMA 14-50 outlet waterproof? Can it be installed outdoors? A: Standard NEMA 14-50 outlets are not waterproof. For outdoor installation, you must use a "Weather Resistant" (WR) rated receptacle and a proper "in-use" weatherproof cover that protects the plug and outlet even when something is plugged in.
Q6: Should I choose a hardwired EV charger or a plug-in NEMA 14-50 EV charger? A: Hardwired chargers are directly connected to the circuit, which some prefer for a permanent setup and potentially slightly higher power delivery. Plug-in NEMA 14-50 EV chargers offer more flexibility if you want to take the charger with you or easily swap it out. Both are good options if installed correctly. Safety and code compliance are key for either choice.
