EV charger IP & IK ratings are crucial and should not be overlooked! Charging stations are constantly exposed to the elements: wind, rain, dust, and even accidental impacts. These factors can damage equipment and pose safety risks. How can you ensure your electric vehicle charger can withstand harsh environments and physical shocks, guaranteeing safe charging and extending its lifespan? Understanding IP and IK ratings is vital. They are international standards for measuring a charger's protective performance and directly relate to how robust and durable your equipment is.
Choosing the right EV charger isn't just about charging speed. Its protective capabilities are equally important. A high-quality charger should be able to withstand the elements, resist dust ingress, and endure unexpected collisions. IP and IK ratings are key standards for assessing these protective performances. They act like the charger's "protective suit," telling you how tough the equipment is. In this article, we'll delve into the meaning of these ratings and how they impact your charging experience and return on investment.
IP Protection Rating: Key to Resisting Environmental Challenges
IP rating, short for Ingress Protection Rating, is an international standard that measures the ability of electrical equipment to protect against the ingress of solid particles (like dust) and liquids (like water). For outdoor or semi-outdoor EV chargers, the IP rating is critical as it directly relates to the equipment's reliability and lifespan.
Understanding IP Ratings: What Dust and Water Protection Means
An IP rating typically consists of two digits, for example, IP65.
•First Digit: Indicates the level of protection the equipment has against solid particles (like dust, debris), ranging from 0 to 6.
0: No protection.
1: Protection against solid objects greater than 50 mm.
2: Protection against solid objects greater than 12.5 mm.
3: Protection against solid objects greater than 2.5 mm.
4: Protection against solid objects greater than 1 mm.
5: Dust protected. Ingress of dust is not entirely prevented, but it must not interfere with the satisfactory operation of the equipment.
6: Dust tight. No ingress of dust.
•Second Digit: Indicates the level of protection the equipment has against liquids (like water), ranging from 0 to 9K.
0: No protection.
1: Protection against vertically falling water drops.
2: Protection against vertically falling water drops when tilted up to 15°.
3: Protection against spraying water.
4: Protection against splashing water.
5: Protection against low-pressure jets of water.
6: Protection against high-pressure jets of water.

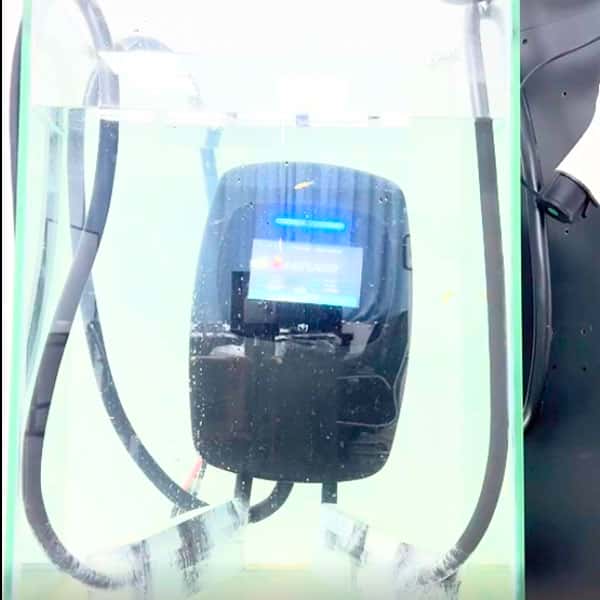

7: Protection against temporary immersion in water (usually 1 meter deep for 30 minutes).
8: Protection against continuous immersion in water (usually deeper than 1 meter, for longer periods).
9K: Protection against high-pressure, high-temperature jets of water.
| IP Rating | First Digit (Solid Protection) | Second Digit (Liquid Protection) | Common Application Scenarios |
|---|---|---|---|
| IP44 | Protected against solids >1mm | Protected against splashing water | Indoor or sheltered semi-outdoor |
| IP54 | Dust protected | Protected against splashing water | Indoor or sheltered semi-outdoor |
| IP55 | Dust protected | Protected against low-pressure jets of water | Semi-outdoor, potentially exposed to rain |
| IP65 | Dust tight | Protected against low-pressure jets of water | Outdoor, exposed to rain and dust |
| IP66 | Dust tight | Protected against high-pressure jets of water | Outdoor, potentially exposed to heavy rain or washing |
| IP67 | Dust tight | Protected against temporary immersion in water | Outdoor, potentially brief submersion |
Common EV Charger IP Ratings and Their Application Scenarios
The installation environments for EV chargers vary widely, so the requirements for IP ratings also differ.
•Indoor Chargers (e.g., home wall-mounted): Typically require lower IP ratings, such as IP44 or IP54. These chargers are installed in garages or sheltered parking areas, primarily protecting against small amounts of dust and occasional splashes.
•Semi-Outdoor Chargers (e.g., parking lots, underground mall parking): It's recommended to choose IP55 or IP65. These locations may be affected by wind, dust, and rain, requiring better dust and water jet protection.
•Outdoor Public Chargers (e.g., roadside, highway service areas): Must choose IP65 or IP66. These chargers are fully exposed to various weather conditions and need to withstand heavy rain, sandstorms, and even high-pressure washing. IP67 is suitable for special environments where temporary submersion might occur.
Choosing the correct IP rating effectively prevents dust, rain, snow, and moisture from entering the charger's interior, thereby avoiding short circuits, corrosion, and equipment malfunctions. This not only extends the charger's lifespan but also reduces maintenance costs and ensures continuous charging service.
IK Impact Rating: Protecting Equipment from Physical Damage
IK rating, short for Impact Protection Rating, is an international standard that measures the resistance of an enclosure against external mechanical impacts. It tells us how much impact force a piece of equipment can withstand without being damaged. For EV chargers in public places, the IK rating is equally crucial as it relates to the equipment's robustness against accidental collisions or malicious vandalism.
Understanding IK Ratings: Measuring Impact Resistance
An IK rating typically consists of two digits, for example, IK08. It indicates the impact energy the equipment can withstand, measured in Joules (Joule).
•IK00: No protection.
•IK01: Can withstand an impact of 0.14 Joules (equivalent to a 0.25 kg object falling from 56 mm height).
•IK02: Can withstand an impact of 0.2 Joules (equivalent to a 0.25 kg object falling from 80 mm height).
•IK03: Can withstand an impact of 0.35 Joules (equivalent to a 0.25 kg object falling from 140 mm height).
•IK04: Can withstand an impact of 0.5 Joules (equivalent to a 0.25 kg object falling from 200 mm height).
•IK05: Can withstand an impact of 0.7 Joules (equivalent to a 0.25 kg object falling from 280 mm height).
•IK06: Can withstand an impact of 1 Joule (equivalent to a 0.5 kg object falling from 200 mm height).
•IK07: Can withstand an impact of 2 Joules (equivalent to a 0.5 kg object falling from 400 mm height).
•IK08: Can withstand an impact of 5 Joules (equivalent to a 1.7 kg object falling from 300 mm height).
•IK09: Can withstand an impact of 10 Joules (equivalent to a 5 kg object falling from 200 mm height).
•IK10: Can withstand an impact of 20 Joules (equivalent to a 5 kg object falling from 400 mm height).
| IK Rating | Impact Energy (Joules) | Impact Object Weight (kg) | Impact Height (mm) | Typical Scenario Example |
|---|---|---|---|---|
| IK00 | None | - | - | No protection |
| IK05 | 0.7 | 0.25 | 280 | Minor indoor collision |
| IK07 | 2 | 0.5 | 400 | Indoor public areas |
| IK08 | 5 | 1.7 | 300 | Semi-outdoor public areas, minor impacts possible |
| IK10 | 20 | 5 | 400 | Outdoor public areas, potential vandalism or vehicle collisions |
Why Do EV Chargers Need High IK Rating Protection?
EV chargers, especially those installed in public places, face various risks of physical damage. These risks can come from:
•Accidental Collisions: In parking lots, vehicles might accidentally hit charging stations while parking or maneuvering.
•Malicious Vandalism: Public facilities can sometimes be targets for vandals; a high IK rating can effectively resist deliberate hitting, kicking, and other destructive behaviors.
•Extreme Weather: In some regions, hail or other natural phenomena can also cause physical impact to the equipment.
Choosing an EV charger with a high IK rating, such as IK08 or IK10, significantly enhances the equipment's resistance to damage. This means that after an impact, the charger's internal components and functions can remain intact. This not only ensures the equipment's normal operation, reducing the frequency of repairs and replacements, but more importantly, it guarantees user safety during use. A damaged charging station may pose risks such as electrical leakage or short circuits, and a high IK rating can effectively mitigate these dangers.
Choosing the Right EV Charger IP & IK Rating: Comprehensive Considerations
Now that you understand the meaning of IP and IK ratings, how do you choose the appropriate protection level for your EV charger? This requires a comprehensive consideration of the charger's installation environment, usage scenarios, and your expectations for equipment lifespan and maintenance costs.
Impact of Installation Environment and Usage Scenarios on Rating Selection
Different installation environments and usage scenarios have varying requirements for IP & IK rating.
•Private Residences (Indoor Garage):
IP Rating: IP44 or IP54 is usually sufficient. Indoor environments have less dust and moisture, so extremely high water and dust protection is not needed.
IK Rating: IK05 or IK07 is adequate for minor daily impacts, such as accidentally knocked-over tools or accidental bumps during children's play.
Consideration: Primarily focuses on charging convenience and cost-effectiveness.
•Private Residences (Outdoor Driveway or Open Parking Space):
IP Rating: At least IP65 is recommended. The charger will be directly exposed to rain, snow, and sunlight, requiring full dust protection and protection against water jets.
IK Rating: IK08 is recommended. In addition to natural elements, potential accidental collisions (like vehicle scrapes) or animal damage need to be considered.
Consideration: Requires stronger environmental adaptability and a certain level of physical impact resistance.
•Commercial Premises (Parking Lots, Shopping Malls):
IP Rating: At least IP65. These locations are typically semi-open or open spaces, where chargers will be exposed to dust and rain.
IK Rating: IK08 or IK10 is strongly recommended. Public places have high foot traffic and frequent vehicle movement, leading to a higher risk of accidental collisions or vandalism. A high IK rating can effectively reduce maintenance costs and downtime.
Consideration: Emphasizes the equipment's robustness, reliability, and anti-vandalism capabilities.
•Public Charging Stations (Roadside, Highway Service Areas):
IP Rating: Must be IP65 or IP66. These chargers are fully exposed outdoors and may face severe weather and high-pressure water washing.
IK Rating: IK10 is strongly recommended. Public charging stations are high-risk areas prone to malicious damage or severe vehicle collisions. The highest IK protection level ensures maximum equipment integrity.
Consideration: Highest level of protection to ensure continuous operation in the harshest environments and highest risks.
•Special Environments (e.g., Coastal Areas, Industrial Zones):
In addition to standard IP and IK ratings, extra protection against corrosion and salt spray may be needed. These environments demand higher requirements for the charger's materials and sealing.
Impact of IP & IK Ratings on Charger Lifespan and Maintenance
Investing in an EV charger with appropriate IP & IK ratings is not just about meeting immediate needs; it's a long-term investment in future operating costs and equipment lifespan.
•Extended Equipment Lifespan: A high IP rating effectively prevents dust and moisture from entering the charger's interior, avoiding issues like circuit board corrosion and short circuits, thereby significantly extending the charger's lifespan. A high IK rating protects the equipment from physical damage, reducing internal structural deformation or component damage caused by impacts. This means your charger can operate stably for longer periods without frequent replacement.
•Reduced Maintenance Costs: Chargers with insufficient protection ratings are more prone to malfunctions, leading to frequent repairs and component replacements. For example, an outdoor charger with a low IP rating might fail after a few heavy rains due to water ingress. A public charging station with a low IK rating might require expensive repairs after a minor collision. Choosing the right protection level can significantly reduce these unexpected failures and maintenance needs, thereby lowering overall operating and maintenance costs.
•Enhanced Service Reliability: For commercial and public charging stations, the normal operation of chargers is crucial. A high protection rating means less downtime due to malfunctions, allowing for continuous and reliable charging services for users. This not only improves user satisfaction but also brings more stable revenue for operators.
•Ensured User Safety: Damaged chargers may pose safety hazards such as electrical leakage or electric shock. IP and IK ratings fundamentally ensure the structural integrity and electrical safety of the charger. A dustproof, waterproof, and impact-resistant charger can minimize the risk of safety accidents caused by equipment malfunctions, providing users with a safe charging environment.
In summary, when choosing an EV charger, never overlook its IP & IK ratings. They are the cornerstone for ensuring the charger operates safely, reliably, and efficiently in various environments.
In today's increasingly popular electric vehicle landscape, understanding and selecting EV chargers with appropriate IP & IK ratings is crucial. IP ratings protect chargers from dust and water ingress, ensuring their electrical safety and normal operation in various weather conditions. IK ratings, on the other hand, measure a charger's resistance to physical impacts, which is particularly vital in public areas, effectively mitigating accidental collisions and malicious damage.
Properly assessing the installation environment and usage scenarios, and choosing the required IP and IK ratings, will not only significantly extend the EV charger's lifespan and substantially reduce maintenance and replacement costs but also provide users with a continuous, safe, and reliable charging experience. As a consumer or Charge Point operator, making an informed choice is laying a solid foundation for the future of electric mobility.
