As electric vehicles (EVs) become increasingly common on our roads, the demand for reliable home charging solutions is soaring. While much attention is rightly paid to electrical safety and charging speeds, a crucial, often overlooked aspect is the EV charger weight bearing. This refers to the physical strength and stability of the charging unit and its mounting system, ensuring it can safely bear its own weight and withstand external forces over time. Understanding the robust EV charger weight bearing is not just about product durability; it's fundamentally about the safety of your home and family.
An EV charger, once installed, becomes a permanent fixture, subjected to various stresses. These can include the charger's own weight, the tension from the charging cable, accidental impacts, or even environmental factors. A well-designed charger with superior weight bearing prevents issues like detachment, structural damage, or premature wear. Industry standards often require these devices to undergo rigorous testing, sometimes enduring loads up to four times their own weight, to guarantee maximum safety and long-term performance. This guide will delve into the specifics of why EV charger weight bearing matters, the testing involved, and what consumers should look for to ensure a secure and reliable charging experience at home. Prioritizing strength and stability ensures your charging setup is built to last and operate safely for years to come.
Why EV Charger Weight Bearing is Crucial?
The rapid adoption of electric vehicles has led to a significant increase in the installation of charging stations, both at home and in public spaces. These devices, while primarily electrical, are also physical structures that must withstand various forces throughout their operational life. The physical weight-bearing capacity of an EV charger is paramount. It ensures that the unit remains securely mounted and structurally sound, preventing potential hazards that could arise from external pressures or the charger's own weight.
Considering the long-term use, an EV charger is exposed to more than just electrical currents. It faces the constant pull and tug of the charging cable, the vibrations from daily use, and even accidental bumps. A charger with insufficient EV charger weight bearing could loosen from its mounting, suffer structural damage, or even fall, posing a serious risk to users, vehicles, and property. Therefore, understanding and prioritizing the physical integrity of your EV charger is as important as its electrical specifications. It directly impacts user safety and and the overall lifespan of the product.
EV Charger Physical Weight-Bearing Test Standards and Requirements
To guarantee the safety and durability of EV chargers, various international and national standards bodies have established rigorous testing protocols for physical weight-bearing capacity. These standards ensure that products meet specific performance benchmarks before they reach the market.
Industry General Standards
Key organizations that set these standards include:
•IEC (International Electrotechnical Commission): Provides international standards for electrical technologies, including EV charging.
•UL (Underwriters Laboratories): A global safety science company that certifies products for safety, particularly prominent in North America.
•GB/T (Guobiao National Standards): China's national standards, which include specific requirements for EV charging equipment.
These standards often dictate the minimum requirements for structural integrity, material strength, and resistance to various physical stresses. Compliance with these standards is a strong indicator of a product's reliability and safety.
Overview of Test Methods
Weight-bearing tests are designed to simulate real-world conditions and extreme scenarios to assess the charger's resilience. Common types of tests include:
•Static Weight Bearing Testing: This simulates the long-term stress on the charger when it is suspended or mounted. A constant, predetermined weight is applied to the charger and its mounting points for an extended period to check for deformation, cracking, or failure. This test ensures the charger can safely bear its own weight and additional static forces over its lifespan.
•Dynamic Load Testing: This involves applying sudden or repetitive forces to simulate external impacts, vibrations, or accidental pulling on the charging cable. This could include drop tests, impact tests, or cyclic loading tests to evaluate how the charger withstands sudden shocks or repeated stress, mimicking real-world usage and potential accidents.
•Mounting Point Strength Testing: This specifically assesses the robustness of the connection points between the charger and the wall or pedestal. It evaluates the strength of the screws, anchors, brackets, and the charger's own housing where these fasteners attach. This test is critical because the charger is only as strong as its weakest link – often the mounting hardware and the integrity of the mounting surface.
The Significance of "4 Times Its Own Weight"
The requirement to withstand "4 times its own weight" is a particularly stringent test standard. This level of over-engineering ensures an exceptionally high safety margin. It means that the charger is designed to handle loads far beyond what it would typically encounter during normal operation.
Why is this important?
•Extreme Safety Buffer: It accounts for unforeseen circumstances, such as accidental impacts, heavy snow or ice accumulation (if outdoor-rated), or even someone leaning on the unit.
•Long-Term Durability: Products that pass such tests are inherently more robust and less prone to fatigue or failure over years of continuous use.
•Installation Imperfections: It provides a buffer for minor imperfections in installation or variations in wall materials, ensuring the charger remains secure even if mounting conditions are not absolutely ideal.
This rigorous testing demonstrates a manufacturer's commitment to product quality and user safety, providing peace of mind for consumers.
Factors Affecting EV Charger Weight Bearing
The ultimate EV charger weight bearing is a result of several interconnected factors, ranging from the materials used to the design of its structure and how it is installed.
Material Selection
The choice of materials plays a fundamental role in determining the charger's strength and durability.
•Enclosure Materials:
Plastics (PC/ABS): Often used for their light weight, cost-effectiveness, and weather resistance. High-quality engineering plastics can offer surprising strength and impact resistance.
Metals (Aluminum Alloy, Stainless Steel): Provide superior strength, heat dissipation, and corrosion resistance. They are often used for more robust or outdoor-rated chargers.
The specific grade and thickness of these materials directly impact the charger's ability to withstand physical stress.
•Internal Structural Support:
The internal framework, chassis, and mounting brackets within the charger are crucial. These components, often made of reinforced plastics or metal, provide the core structural integrity.
The design and material of these internal supports ensure that the weight and any external forces are distributed effectively throughout the unit.
Structural Design
Beyond material selection, the charger's structural design is key to its weight-bearing performance.
•Wall-Mounted / Pedestal Design:
Wall-mounted chargers: Rely heavily on the strength of the backplate and the mounting points to distribute weight onto the wall.
Pedestal-mounted chargers: Require a robust base and column design to withstand forces from all directions.
Each design type has specific engineering challenges to ensure stability.
•Mechanical Stress Distribution:
Effective structural design aims to distribute stress evenly across the charger's body and mounting points. This prevents localized stress concentrations that could lead to cracking or failure.
Engineers use techniques like ribbing, gussets, and optimized material thickness to achieve this.
•Fastener Strength:
The strength of the connecting components, such as screws, expansion bolts, and mounting brackets, is critical.
The material, size, and type of these fasteners (e.g., stainless steel for corrosion resistance) directly impact how securely the charger is attached to its mounting surface.
Proper torque during installation is also vital to ensure these fasteners perform as designed.
Installation Environment and Method
Even the strongest charger can fail if not installed correctly in a suitable environment.
•Wall/Column Type:
The type of mounting surface significantly impacts the overall weight bearing.
Concrete or brick walls: Generally provide excellent support.
Drywall/plasterboard: Requires specific anchors (e.g., toggle bolts) or mounting to studs for adequate support.
Wooden structures: Need appropriate screws driven into solid wood.
An unsuitable mounting surface can compromise even the best charger's weight-bearing capabilities.

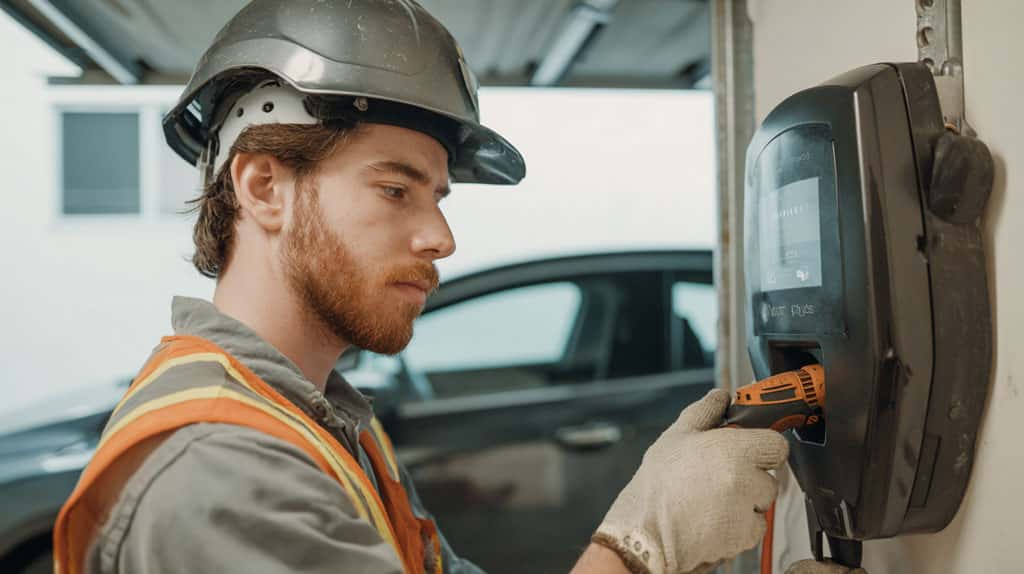

•Installation Guidelines:
Strict adherence to the product's installation manual and electrical codes is paramount. Manufacturers provide specific instructions for mounting, including recommended fastener types and patterns. Deviating from these can invalidate warranties and, more importantly, create safety hazards.
•Professional Installation:
It is highly recommended that EV chargers be installed by qualified professionals. Licensed electricians or certified installers possess the expertise to evaluate the mounting surface, select appropriate fasteners, and ensure the charger is securely and safely mounted, meeting all weight-bearing requirements. Their experience minimizes installation errors that could compromise safety.
Practical Operation and Verification of Weight-Bearing Tests
The process of testing an EV charger's physical weight-bearing capacity involves specialized equipment and a systematic approach to ensure reliable and repeatable results.
Test Equipment
Specialized equipment is essential for accurately conducting weight-bearing tests:
•Tensile Testing Machines: Used to apply pulling forces to test the strength of materials and components, simulating tension on cables or mounting points.
•Compression Testing Machines: Apply pushing forces to test the charger's ability to withstand crushing loads.
•Impact Testers: Used for dynamic load testing, simulating sudden blows or drops.
•Vibration Tables: Subject the charger to various frequencies and amplitudes of vibration to assess its resilience to long-term shaking.
•Load Cells and Sensors: Precision instruments used to measure the exact forces applied during testing, ensuring compliance with specified loads (e.g., 4 times the charger's weight).
Test Procedures
A typical weight-bearing test procedure follows these steps:
1.Sample Preparation: The EV charger unit, along with its specified mounting hardware, is prepared according to the test standard.
2.Mounting Setup: The charger is securely mounted to a test fixture that replicates its intended installation environment (e.g., a simulated wall section).
3.Weight Bearing Application: Forces are gradually or dynamically applied to specific points on the charger, such as the mounting points, the cable entry/exit points, or the main body. For static tests, the weight bearing is maintained for a defined duration. For dynamic tests, impacts or vibrations are applied.
4.Data Recording: Throughout the test, sensors record data on deformation, stress, and any signs of failure.
5.Result Determination: The test is deemed successful if the charger withstands the specified weight bearing without structural failure, significant deformation, or loss of functionality.
Significance of Passing the Test
Passing the "4 times its own weight" test signifies that the product maintains its structural integrity and functionality even under extreme conditions. This provides consumers with a higher level of safety assurance. It means the manufacturer has gone above and beyond to ensure the charger is robust enough to handle not just everyday use but also unexpected stresses, significantly reducing the risk of product failure and associated hazards.
Certifications and Markings
Products that successfully pass relevant weight-bearing tests often receive specific certifications and markings from testing organizations. These might include:
•UL Listed/Certified: Indicates compliance with UL's safety standards.
•CE Mark: For products sold within the European Economic Area, indicating conformity with health, safety, and environmental protection standards.
•TÜV SÜD or Intertek Marks: Other independent testing and certification bodies.
These marks serve as a visible assurance to consumers that the product has undergone rigorous testing and meets established safety and performance criteria, thereby building trust and confidence in the product's quality and durability.
How to Choose an EV Charger with Good Weight Bearing
Selecting an EV charger with robust weight bearing is crucial for long-term safety and peace of mind. Here's what to look for:
•Review Product Specifications: Always read the product's technical specifications and installation manual. Look for explicit mentions of weight-bearing capacities, material grades, and recommended mounting hardware. Some manufacturers may even provide test reports or certifications on their websites. A lack of such information might be a red flag.
•Focus on Brand Reputation: Choose products from reputable brands with a proven track record in the EV charging industry. Established manufacturers typically adhere to stricter quality control processes and testing standards. Online reviews and industry awards can also provide insights into a brand's reliability.
•Consult Professionals: Before purchasing and installing, consult with experienced electricians or EV charger installation service providers. They can assess your specific installation environment, recommend suitable charger models based on their physical characteristics and your wall type, and provide expert advice on ensuring optimal weight bearing. Their expertise can prevent costly mistakes and ensure safety.
•Check Installation Quality: After installation, perform a preliminary check of the mounting's firmness. Gently try to move the charger to ensure it feels securely fastened to the wall or pedestal. While this is not a substitute for professional inspection, it can help identify any immediate looseness. Ensure all visible screws are tightened and the unit sits flush against the mounting surface.
Weight Bearing is a Key Indicator of EV Charger Quality
The physical EV charger weight bearing is a fundamental aspect of an EV charger's overall quality and safety. It extends beyond mere electrical performance, addressing the structural integrity and durability required for a device that will be a permanent fixture in your home for many years.
Safety is the cornerstone of any electrical installation, and the physical weight-bearing capability is an indispensable part of an EV charger's safety performance. A charger that can withstand significant physical stress reduces the risk of accidents, property damage, and personal injury.
Furthermore, high weight bearing inherently translates to greater durability and reliability. Products designed and tested to withstand extreme forces are more likely to endure the rigors of daily use, environmental factors, and unforeseen impacts, ensuring a longer operational lifespan and consistent performance.
Looking ahead, as charging technology continues to evolve and user demands for safety and convenience increase, the physical weight-bearing design and testing of EV chargers will become even more refined and intelligent. Linkpower will continue to innovate in materials, structural engineering, and smart installation solutions to provide ever-safer and more robust charging experiences. Prioritizing EV charger weight bearing is not just a technical requirement; it's a commitment to peace of mind for every EV owner.
