Welcome to the world of electric vehicles (EVs)! If you're a new owner or thinking about becoming one, you've probably heard the term "range anxiety." It's that little worry in the back of your mind about running out of power before you reach your destination. The good news? The solution is often right in your own garage or parking spot: the charging pile.

But as you start looking, you might feel overwhelmed. What's the difference between a charging pile and a charging station? What do AC and DC mean? How do you pick the right one?

Don't worry. This guide will walk you through everything, step by step. First, let's clear up one common point of confusion.

A charging pile is a single, standalone unit that charges one vehicle at a time. Think of it as your personal fuel pump at home or a single charger in a parking lot.

A charging station is a location with multiple charging piles, like a gas station but for EVs. You'll find these along highways or in large public parking areas.

This guide focuses on the charging pile—the device you'll interact with most.

What Exactly is a Charging Pile?

Let's break down what this essential piece of equipment is and what it does.

Its Main Job

At its core, a charging pile has one simple but vital job: to safely take electricity from the power grid and deliver it to your car's battery. It acts as a smart gatekeeper, making sure the power transfer is smooth, efficient, and, most importantly, safe for both you and your vehicle. By doing this, it makes owning an EV convenient and helps tackle that range anxiety.

What's Inside?

While they look sleek and simple on the outside, a few key parts work together inside.

Pile Body: This is the outer shell that protects all the internal components.

Electrical Module: The heart of the charger, managing the flow of power.

Metering Module: This measures how much electricity you're using, which is important for tracking costs.

Control Unit: The brain of the operation. It communicates with your car, monitors the charging status, and manages all the safety features.

Charging Interface: This is the cable and connector (the "gun") that you plug into your car.

The Different Types of Charging Piles

Not all chargers are created equal. They can be grouped in a few different ways, depending on their speed, how they're installed, and who they're for.

By Speed: AC (Slow) vs. DC (Fast)

This is the most important difference to understand, as it directly affects how quickly you can get back on the road.

AC Charging Pile: This is the most common type for home and workplace charging. It sends Alternating Current (AC) power to your car, and your car's own "onboard charger" converts it to Direct Current (DC) to fill the battery.

Speed: They are often called "slow chargers," but they're perfect for overnight use. Power typically ranges from 3 kW to 22 kW.

Time: It usually takes 6 to 8 hours to fully charge a standard EV, making it ideal for plugging in when you get home from work.

Best For: Home garages, apartment complexes, and office parking lots.

DC Fast Charging Pile: These are the powerhouses you find along highways. They bypass your car's onboard charger and deliver high-power DC electricity directly to the battery.

Speed: Very fast. Power can range from 50 kW to over 350 kW.

Time: You can often charge your battery to 80% in just 20 to 40 minutes—about the time it takes to grab a coffee and a snack.

Best For: Highway rest stops, public charging hubs, and anyone on a long road trip.

How They're Installed

Where you plan to put your charger also determines the type you'll get.

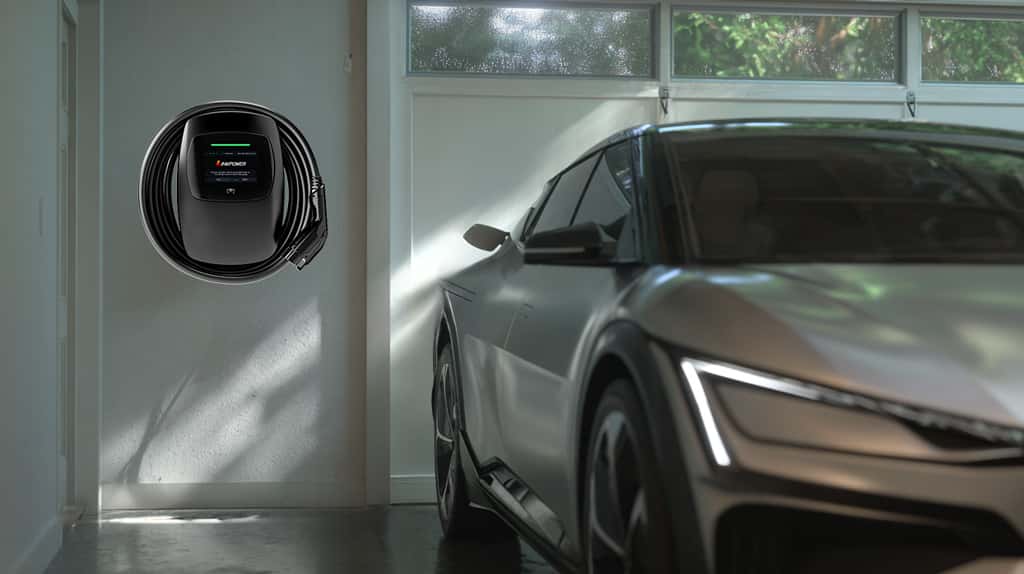

Wall-Mounted Charging Pile: Often called a "Wallbox," this type is fixed directly to a wall. It's compact, saves space, and is the most popular choice for home garages.

Floor-Mounted Charging Pile: This is a standalone post that's bolted to the ground. It's perfect for outdoor parking lots or commercial areas where there isn't a convenient wall.

Portable Charger: This isn't technically "installed." It's a heavy-duty cable with a control box that you can plug into a standard or industrial wall socket. It's a great backup or a primary solution for renters or those who can't install a fixed charging pile.

By Who Uses Them

Private Piles: These are installed at a home for personal use. They are not open to the public.

Dedicated Piles: These are set up by a business, like a shopping mall or hotel, for their customers and employees to use.

Public Piles: These are built for everyone to use and are usually run by a government agency or a charging network operator. To keep wait times short, these are almost always DC fast chargers.

To make things easier, here is a quick comparison.

Charging Pile Quick Comparison
Type	Common Power	Avg. Charge Time (to 80%)	Best For	Typical Equipment Cost
Home AC Pile	7 kW - 11 kW	5 - 8 hours	Overnight home charging	$500 - $2,000
Commercial AC Pile	7 kW - 22 kW	2 - 4 hours	Workplaces, hotels, shopping centers	$1,000 - $2,500
Public DC Fast Pile	50 kW - 350+ kW	15 - 40 minutes	Highway travel, quick top-ups	$10,000 - $40,000+
Portable Charger	1.8 kW - 7 kW	8 - 20+ hours	Emergencies, travel, renters	$200 - $600

How to Pick the Perfect Charging Pile for You

Choosing the right charging pile might seem complicated, but you can narrow it down by answering a few simple questions.

Step 1: Know Your Needs (Home, Work, or Public?)

First, think about your daily driving.

For Home: If you're like most EV owners, you'll do over 80% of your charging at home. A wall-mounted AC charging pile is almost always the best choice. It's cost-effective and convenient.

For a Business: If you want to offer charging for employees or customers, you might consider a mix of AC piles for all-day parking and a few DC piles for quick top-ups.

Step 2: Understand Power and Speed

More power isn't always better. Your charging speed is limited by the weakest link among three things:

1.The charging pile's maximum power output.

2.Your home's electrical circuit capacity.

3.Your car's maximum charging speed (especially for AC charging).

For example, installing a powerful 11 kW charger won't help if your car can only accept 7 kW. A certified electrician can help you figure out the perfect balance.

Step 3: The Plug Puzzle (Connector Types)

Just like phones used to have different chargers, so do EVs. You need to make sure your charging pile has the right plug for your car. Here are the most common ones around the world.

Global EV Connector Guide
Connector Name	Main Region	Commonly Used By
Type 1 (J1772)	North America, Japan	Nissan, Chevrolet, Ford (older models)
Type 2 (Mennekes)	Europe, Australia, Asia	BMW, Audi, Mercedes, Tesla (EU models)
CCS (Combo 1 & 2)	North America (1), Europe (2)	Most new non-Tesla EVs
CHAdeMO	Japan (declining globally)	Nissan Leaf, Mitsubishi Outlander PHEV
GB/T	China	All EVs sold in mainland China
NACS (Tesla)	North America (becoming standard)	Tesla, now being adopted by Ford, GM, and others

Step 4: Look for Smart Features

Modern charging piles are more than just power outlets. Smart features can make your life much easier.

Wi-Fi/App Control: Start, stop, and monitor charging from your phone.

Scheduling: Set your car to charge only during off-peak hours when electricity is cheapest.

Load Balancing: If you have two EVs, this feature can share power between them without overloading your home's circuit.

Step 5: Don't Compromise on Safety

Safety is non-negotiable. A quality charging pile should be certified by a recognized authority (like UL in North America or CE in Europe) and include multiple safety protections.

Overcurrent and overvoltage protection

Short-circuit protection

Over-temperature monitoring

Ground fault detection

Installing Your Charging Pile: A Simple Guide

Important Disclaimer: This is an overview of the process, not a do-it-yourself guide. For your safety and to protect your property, a charging pile must be installed by a licensed and qualified electrician.

Before You Install: The Checklist

Hire a Pro: The first step is to have an electrician assess your home's electrical system.

Check Your Panel: The electrician will confirm if your main electrical panel has enough capacity for a new, dedicated circuit.

Get Permits: Your electrician will also know about any local permits required for the installation.

The Installation Process (What the Pro Will Do)

1.Turn Off Power: They will shut off the main power at your circuit breaker for safety.

2.Mount the Unit: The charger will be securely mounted to the wall or floor.

3.Run the Wires: A new, dedicated circuit will be run from your electrical panel to the charger.

4.Connect and Test: They will connect the wires, turn the power back on, and perform a full test to ensure everything works perfectly.

Safety and Maintenance Tips

Outdoor Proofing: If your charger is outside, make sure it has a high weather-protection rating (like IP54, IP55, or IP65) to protect it from rain and dust.

Keep it Clean: Regularly wipe down the unit and check the cable and connector for any signs of wear or damage.

Choosing the right charging pile is a key step in making your EV experience a great one. By understanding your needs, picking the right type of charger, and prioritizing a safe, professional installation, you can say goodbye to range anxiety forever. Investing in a quality home charger is an investment in convenience, savings, and a greener future.
